F250 Upfitter Switch Wiring. Dtp series connectors offer the proven reliability and quality of deutsch's dt series,. You can not disturb the other components’ wiring.

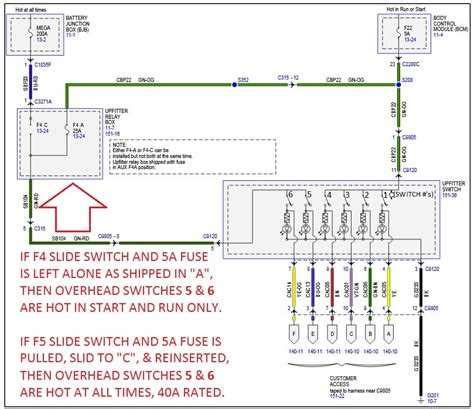

Ford F250 Wiring Diagram For Upfitter Switches from schematron.org
Web 2022 f250 w/upfitter switches. Web 2011 f250 king ranch upfitter switch wiring diagram. Web to help power your upfit needs, ford has increased the circuit capacity over the previous generation.
Web 2022 F250 W/Upfitter Switches.
Web want to wiring an auxiliary device like led lighting to your ford super duty upfitter switches? Web the answer to all of your most demanding power application requirements. You can not disturb the other components’ wiring.
Web Not A Electrician But Totally Understand The Upfitter Switches And The Corresponding Wires Under The Relay Box (Engine) And 2Nd Set By Passenger Kick Plate.
Plus two 40 amp circuits. Web to help power your upfit needs, ford has increased the circuit capacity over the previous generation. Functions perform by upfitter switches on ford f250.
There Are Now Four 25 Amp Circuits.
Received 229 likes on 142 posts. Web you need to match the wiring color of these switches with the manual. Web 2011 f250 king ranch upfitter switch wiring diagram.
Web Location Of Up Fitter Wires On 2019 F250Hydroseedpros.com
2019 f250 6.7l upfitter switches through trailer connection. Location of the upfitter switch wires in the cab and engine compartment. Web what are the aux switches on a ford f250 used for?
Dtp Series Connectors Offer The Proven Reliability And Quality Of Deutsch's Dt Series,.
Just read section in the 2022 truck manual on the aux switch wiring. In my videos i talk about my experience daily driving m. In this video we show you an example how to run wire cleanly.
